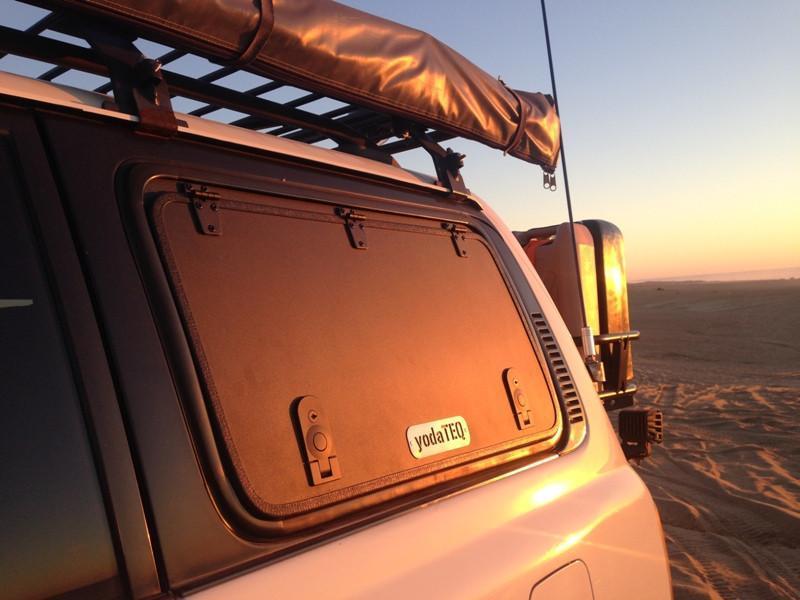

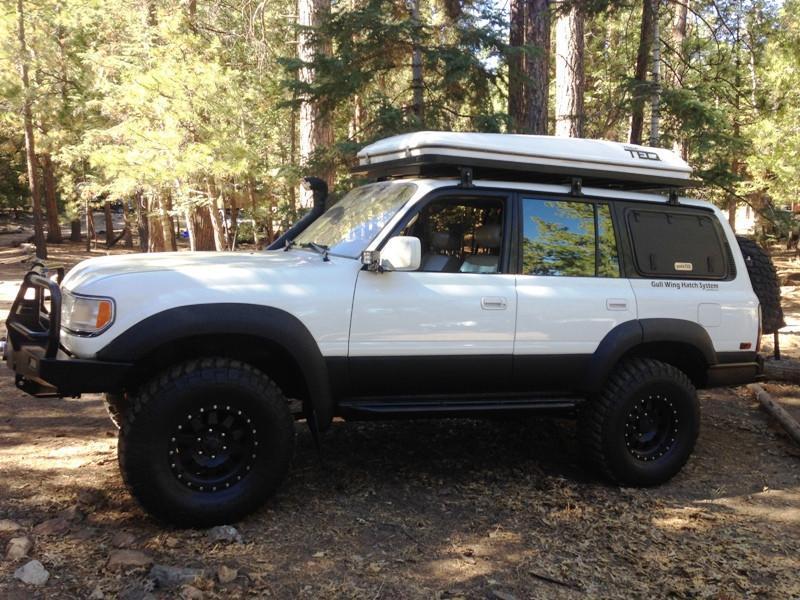

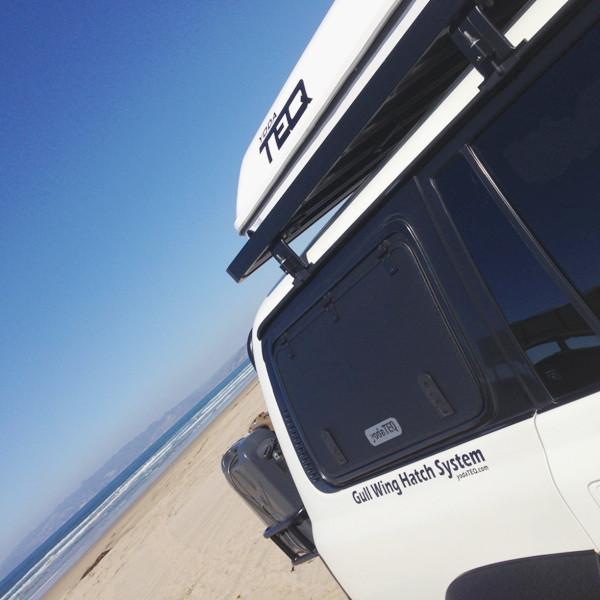

The yodaTEQ Gull Wing Hatch System with Molle Panels replaces the rear windows of the 80 Series Toyota Land Cruiser FJ80 FzJ80 and Lexus LX450 IN STOCK

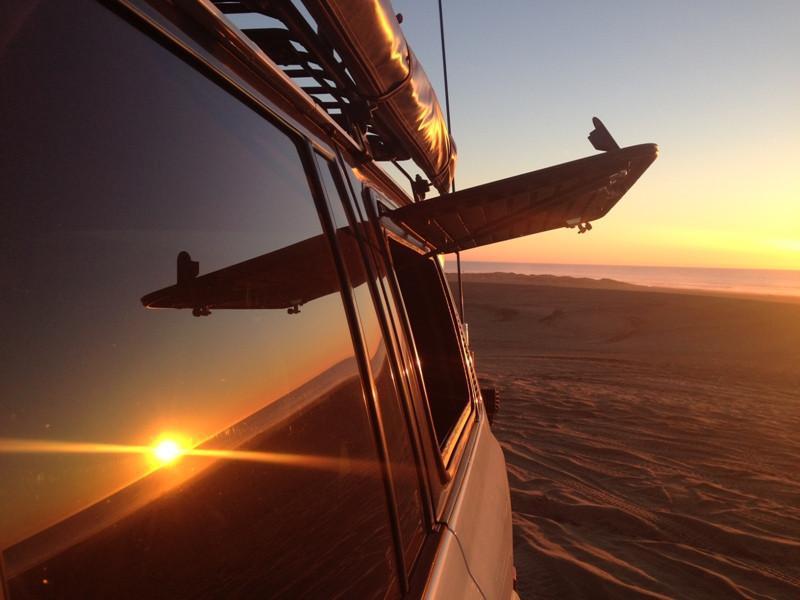

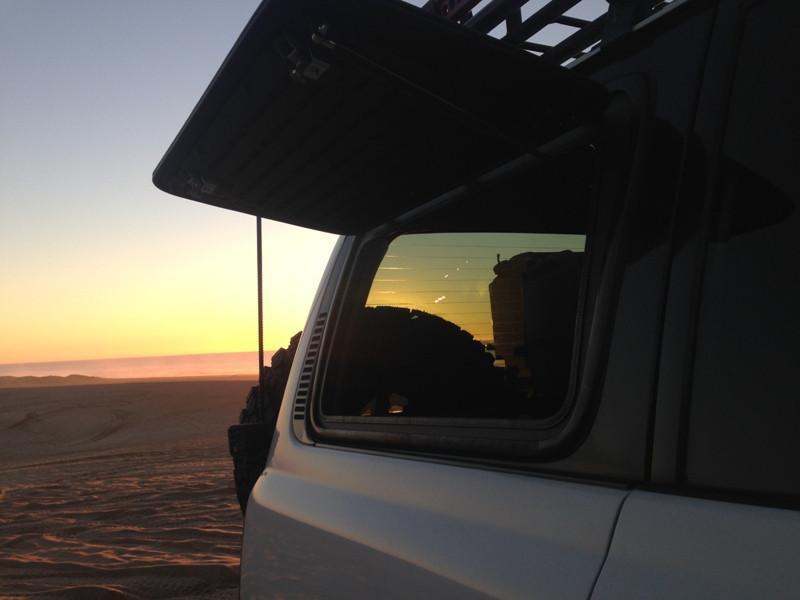

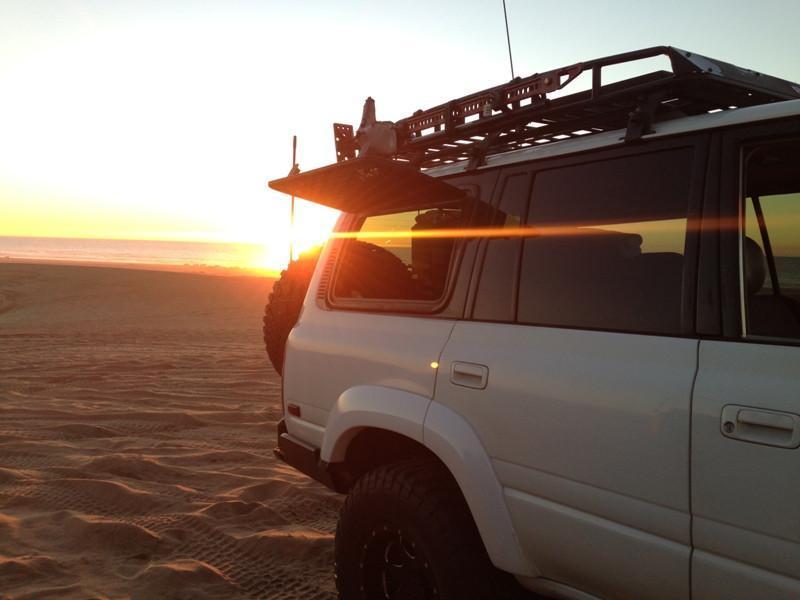

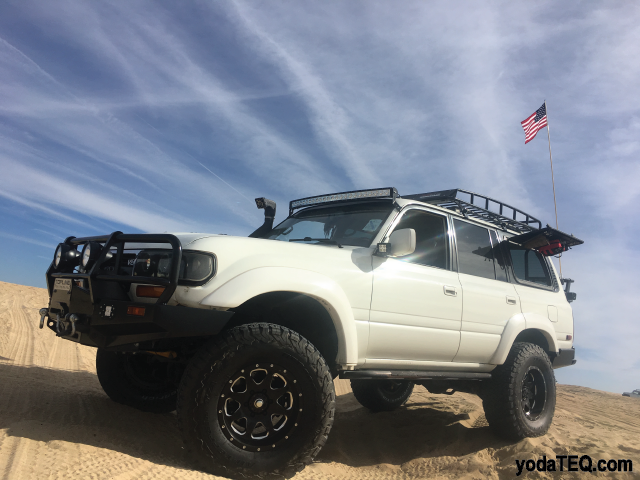

Rear Side Auto-Up Windows gives you easy access to your load area via the side of your vehicle that can be locked to protect your valuables.

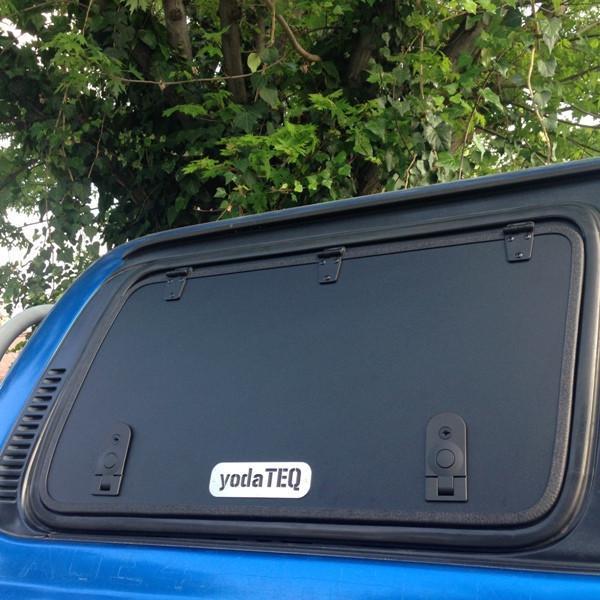

Two 1-button compression latches activate the gas strut to allow access to your rear cargo area. It's merely Click Click and reach into your fridge for a cold drink on a warm day, a jacket on a cool evening or your extraction bag to help out a fellow off-roader. No more opening the rear hatch, tailgate and 2 swing outs to get your gear.
The yodaTEQ Gull Wing Hatch System installs utilizing your existing Toyota Factory Rubber Window weatherstrip, aluminum frame and internal run channel.
NO DRILLING INTO YOUR 80 TO INSTALL OUR REAR SIDE AUTO UP WINGS

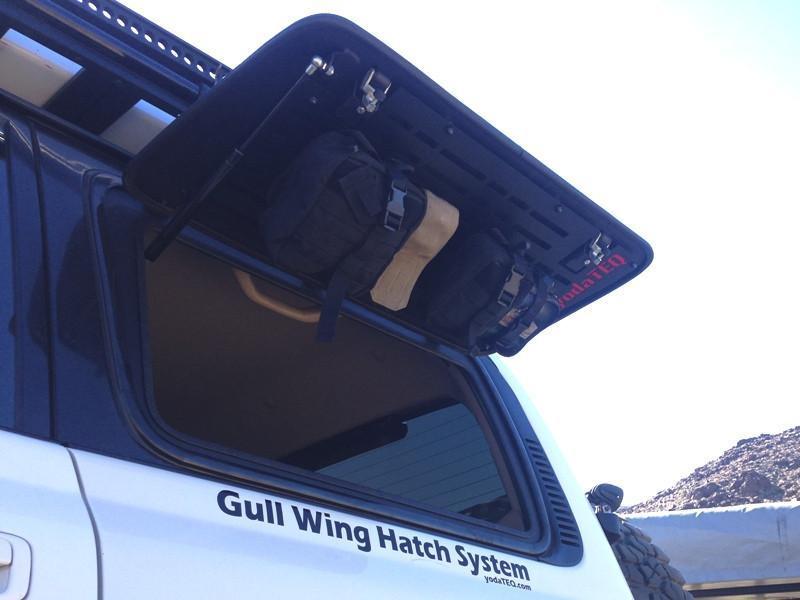

With the addition of the yodaTEQ Molle Panels gives you the ability to add bags and some lightweight gear to maximize the space and be assured to have your important items (First Aid Kit, flashlight, air deflators, tire gauge etc.) at the Ready. Instead of fumbling around when you need them.
Inside View of the Molle Panel and frame - Adjustable Compression Latches with Rubber bumpers over grip screws at frame's edge trim. yodaTEQ in RED with black acorn nuts for a complete finish.

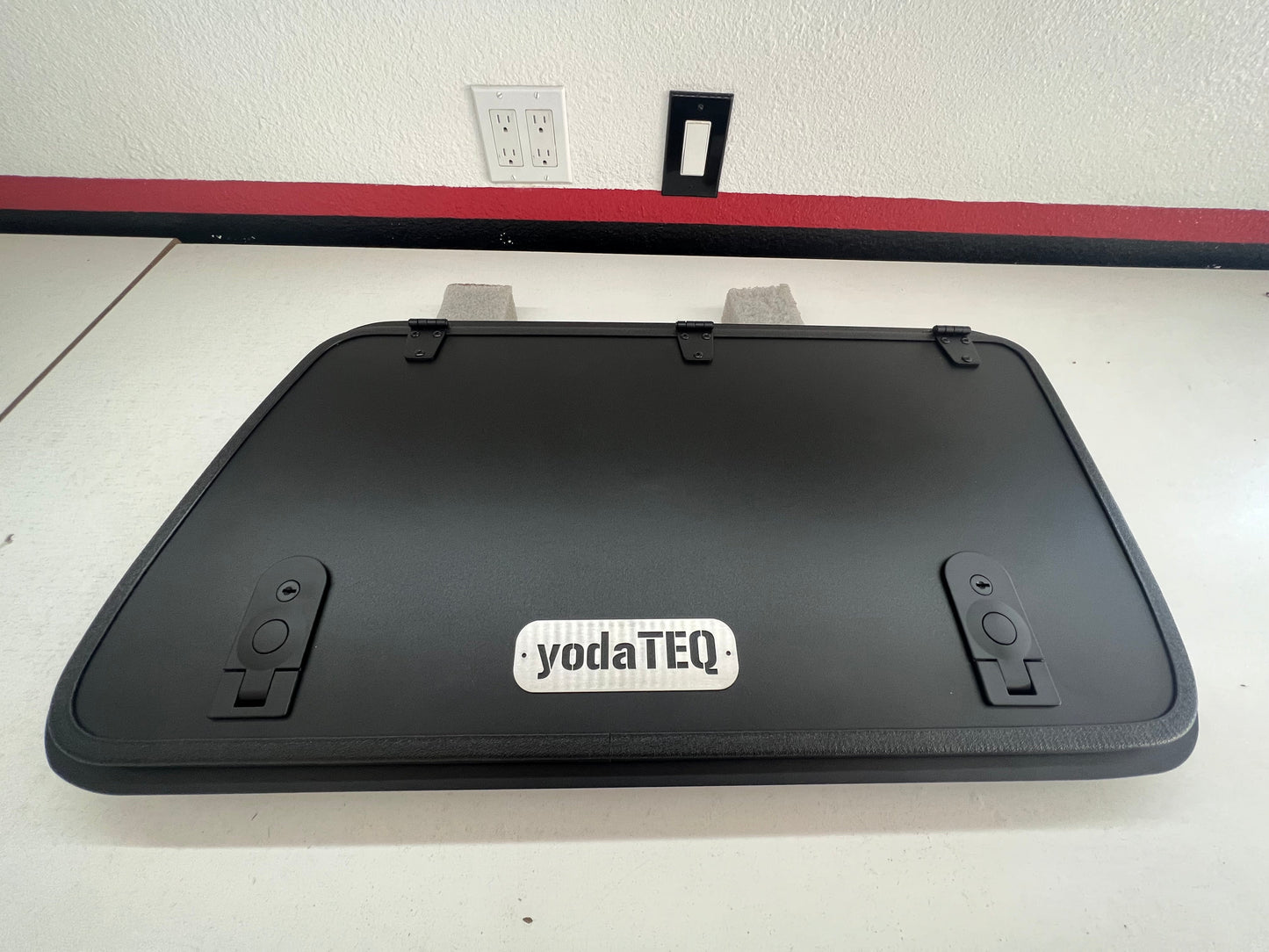

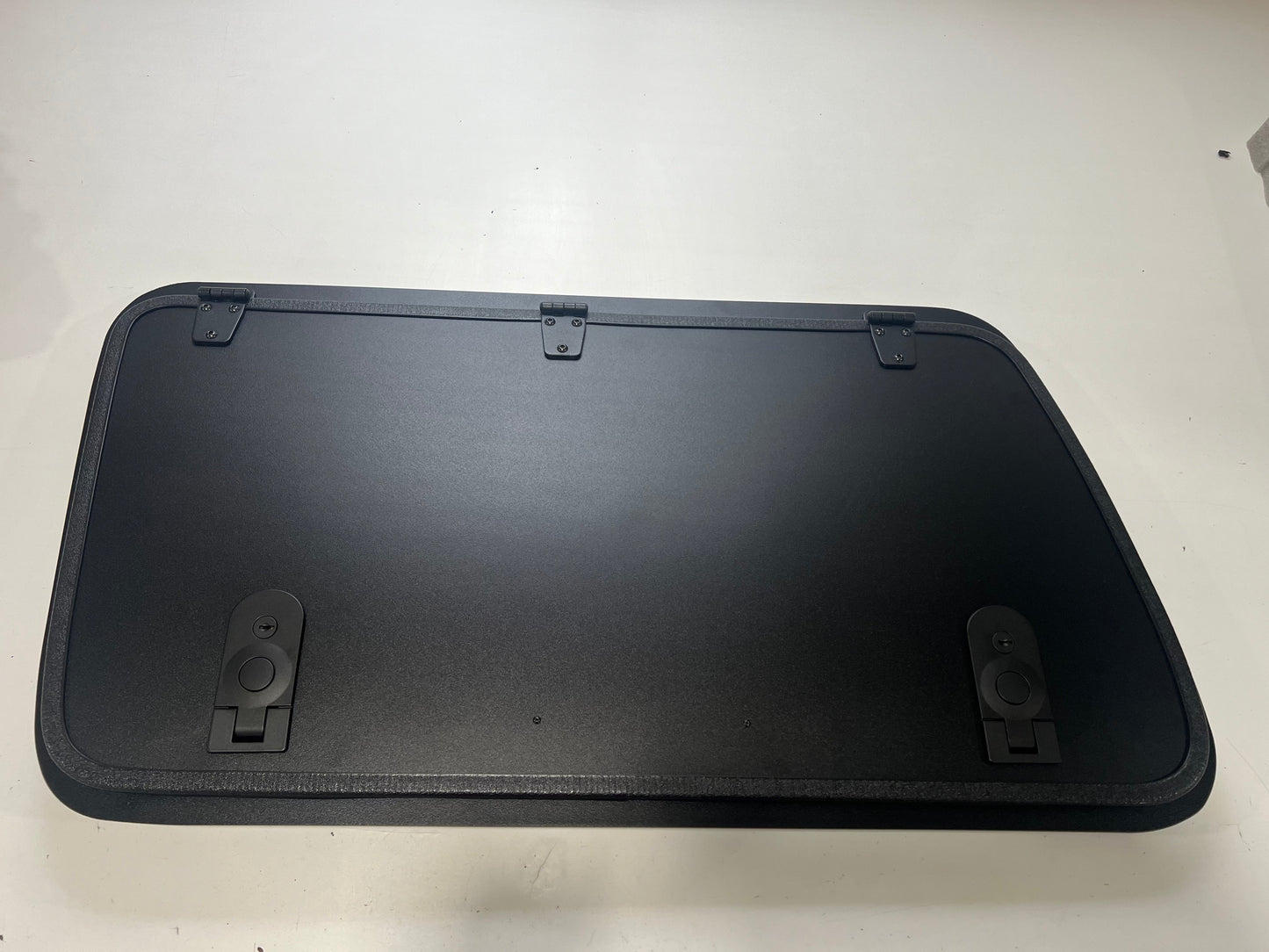

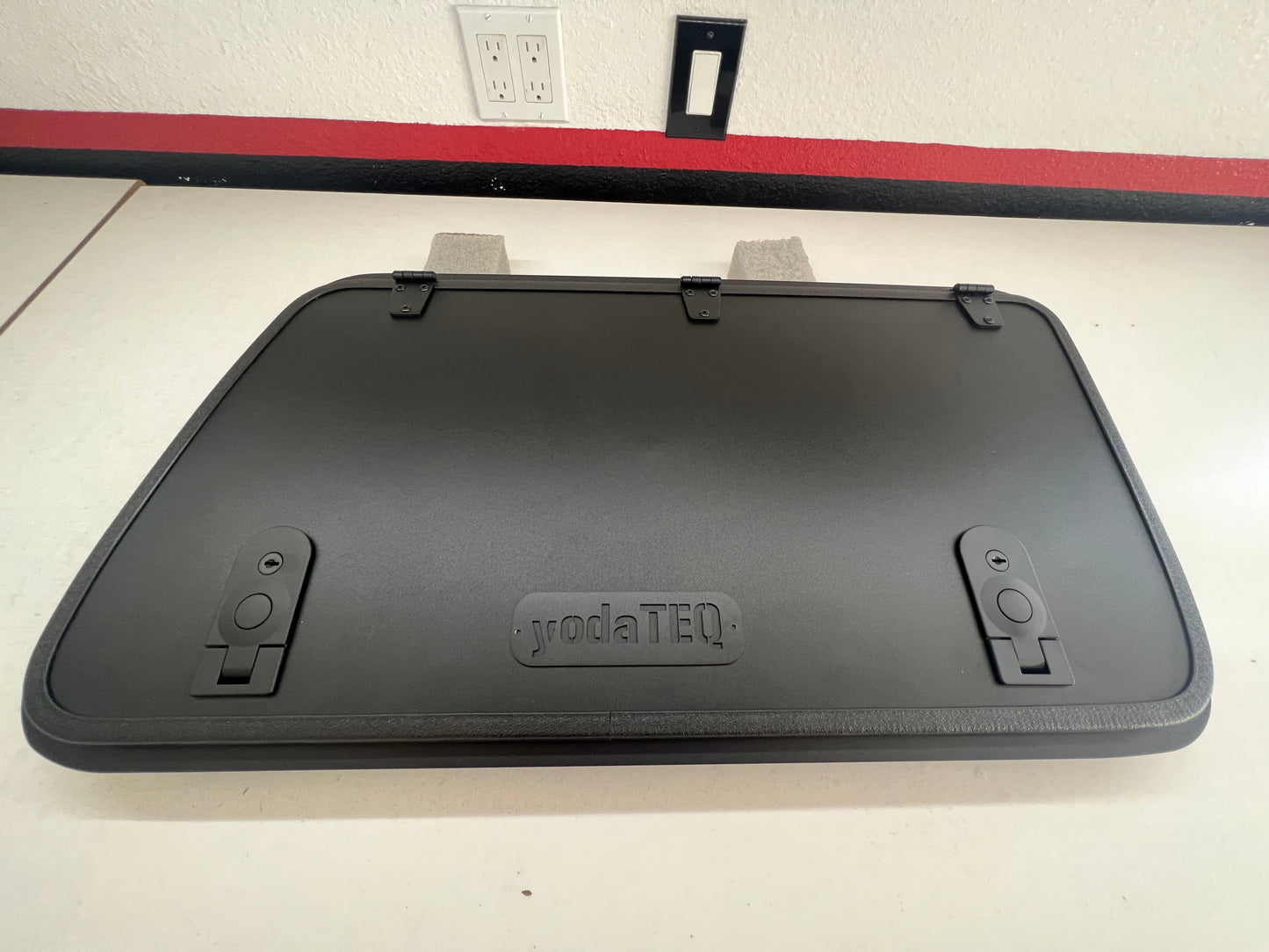

Complete System w/Molle Panels (Both Driver & Passenger side) includes:
Hatch Doors (ALUMINUM)
Window Frames (ALUMINUM)
Molle Panels (ALUMINUM)
Black Acorn Nuts
Tig Welded Studs
yodaTEQ Name Plate * See options
Gas Strut Brackets (ALUMINUM)
Stainless Steel Hinges
Gas Struts (hardware included)
Weather Resistant Vinyl Edge Grip Seals for Doors
Edge Trim with metal core for Frames
Lockable Compression Latches with grip screws
Flange Gasket for Compression Latches
Rubber Bumpers placed on the heads of the grip screws on compression latches
Check out our installation video series
9 Part Installation Video Series on YouTube
Our customers viewed this series to make their installations a breeze.
ALL orders will come with the yodaTEQ Molle panels
*website calculates the shipping cost
yodaTEQ GULL WING HATCH SYSTEM WITH MOLLE PANELS (ALUMINUM SET - BOTH SIDES)
https://yodateq.com/collections/gullwings/products/80wings-a
yodaTEQ Install Video Series
https://youtube.com/playlist?list=PLHu1bpIjsUj722_6P33keLGhnsK7ypKVJ
OTRAMM yodaTEQ 80 Series Gull Wing Hatch Install
https://www.youtube.com/watch?v=Xmx5I-AE2Gc&t=23s
at 18:40 he shows how we install the wings using Paracord (he uses electrical wire)
Video from Australia from the folks at 4WD Glamping Australia
Toyota Land Cruiser 80 Series 91-97 GullWing Hatch System with Molle Panels Lexus / LX450
An alternative installation would be to purchase a Toyota weather strip (for non USA spec Single Solid Glass) and louvers to match
Weatherstrip (2) 62741-60030 WEATHERSTRIP, QUARTER WINDOW, RH/LH
LEFT Louver (1) 62906-60010 LOUVER, QUATER VENTILATION, LH
RIGHT Louver (1) 62905-60010 LOUVER, QUATER VENTILATION, RH
